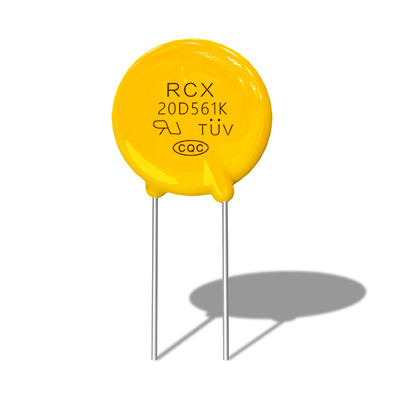

High Energy Radial Rcx Varistors 20D471K 20D511K 20Mm Metal Oxide Lead Varistors

1000 pieces
MOQ
High Energy Radial Rcx Varistors 20D471K 20D511K 20Mm Metal Oxide Lead Varistors
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Features: High energy
Application: Industry / Consumer /communication electronics etc
Series: 20D Series
Mounting Type: Throught Hole
Description: Radial Metal Oxide Varistors (MOV)
Model Number: 20D471K 20D511K
Type: Metal Oxide Varistor (MOV)
Brand: RCX
Coating: Epoxy Resin
Lead: Cp/Cu wire
Electrode: Silver
Disc: Zinc Oxide
Solder: Sn:96.5% CU0.5% Ag3.0%
Varistor Voltage: 18-820V
Operating Temperature: -40℃~+125℃
Rated Power: 0.25W
Основная информация
Model Number: 20D471K 20D511K
Оплата и доставка Условия
Характер продукции
Product Paramenters
20mm Metal Oxide Varistor Specification (20D)
Characteristics:
1.High performance transient voltage suppression 2.Short response time to surge voltage 3.Low standby power dissipation 4.Excellent clamping characteristics 5.High performance withstanding surge currents 6.High reliability 7.UL,TUV, CQC recognized. Applications:
Consumer electronics, Industrial electronics, Communication electronics, Measuring and controlling systems, Electronic home appliances, Protection against surge induced by lighting striking incoming power lines, Suppression of surge caused by switching inductive loads such as transformers, relays and coils. Protection of rectification diodes,SCRs,power transistors,semiconductor devices etc
Product Display
Features
Application Field
About Us
Our Advantages
Packing & Shipping
FAQ
Q:What's the order procedure? A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do prepaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you. Q:How do you take care when your clients received defective products? A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment. Q:How do you check all the goods in the production line? A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure. Q:How is our after-sales service? A:1. Our products are all original and new from manufacturer. It must be work if the model number is correct. 2. We offer 30-90 days warranty to our products. 3. During the guarantee period, if the items you purchased from our store are out of perfected quality, please notify us within 3 days after delivery, we will return the new products when we got your message.
